Sodium hypochlorite generator titanium anode - ruthenium-iridium titanium anode

Sodium hypochlorite generator is a device that generates sodium hypochlorite solution by electrolysis of brine, which is composed of water softening device, salt dissolving device, filtering device, proportioning device, electrolytic electrode assembly, rectifier power supply, automatic control system, storage and dosing device, acid washing device, etc. The pure sodium hypochlorite solution made is a strong oxidant , with strong sterilization and bleaching effect, and is currently the most widely used disinfectant. This is the most commonly used disinfectant.

The medium-sized split type automatic sodium hypochlorite generator adopts the cabinet installation method, all electrical parts are centrally installed inside a vertical cabinet, which is the core part of the whole system control.

The system uses softened water for the dissolved brine and diluted diluted brine. The system is equipped with a vertical screw salt adding machine, which only needs to import salt into the salt adding machine bucket, and the salt adding machine will automatically transport salt into the dissolved salt tank. The dissolved brine is pumped out and injected back into the dissolved brine distributor to form a cycle of pressurization; it can quickly dissolve the salt particles and use the dissolved brine pump to pressurize the dissolved brine into the precision filter (5Sum), and the saturated brine and softened water are automatically proportioned according to the liquid level control to obtain accurate diluted brine.

The system produces low concentration sodium hypochlorite solution by electrolysis of 2.5 ~ 3.0% dilute brine, because the electrolytic electrode is immersed in the electrolyte without diaphragm, the hydrogen ions precipitated on the surface of the anode are absorbed by all hydroxyl radicals, and the concentration of the formed sodium hypochlorite solution is close to the saturation level (the saturation level of sodium hypochlorite can reach 15%), and no chlorine gas will precipitate, so it is used for on-site preparation. safety is extremely high.

Sodium hypochlorite generator titanium anode composition

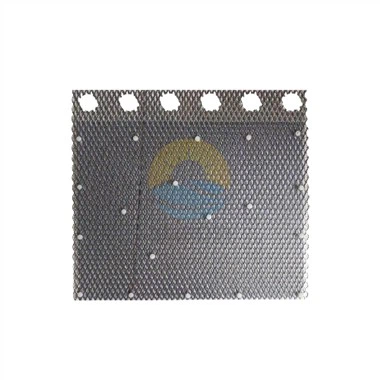

Sodium hypochlorite generator titanium anode set consists of titanium anode plate, titanium cathode plate, bipolar anode plate, titanium flange, copper bolts, tetrafluoro connectors and so on. We can also design and process according to customers' requirements, or process and produce other specifications of sodium hypochlorite generator titanium anode plate according to customers' drawings.
